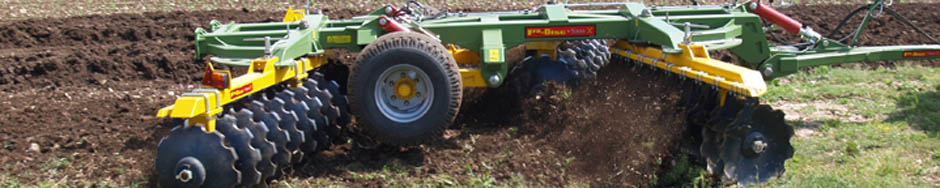

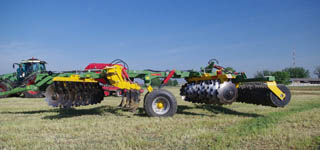

FRACONDISC  3000  4000 Disc harrow with subsoiling function, conditioning tines and rear rollers

Disc harrow combined with subsoiling  function. Conditioning could be done in one pass loosening of the deep layers, cutting-mixing of the top soil layer and finishing the operation by good consolidation by rear roll.

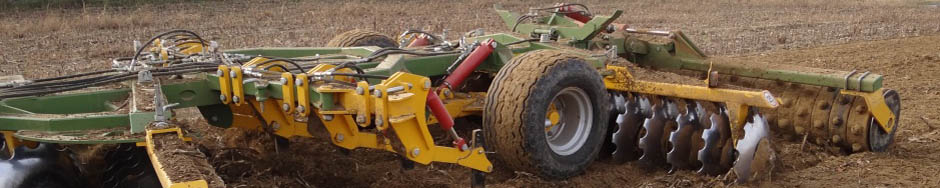

CONDISC Disc harrow with subsoiling function, conditioning tines and rear rollers

Characteristics:

• Easily adjustable wings, appropriate weight for the good penetration.
• Front disc blades are 660 mm diameter, large enough to penetrate in dry condition, or mix well in wet. But not to big so not creates large clods.
• Hydraulic reset tines are individually adjustable in depth. Point are having low wing angle, it does not create large clods and easy to pull.

• Rear disc gang angle is adjustable for good mix and cut.

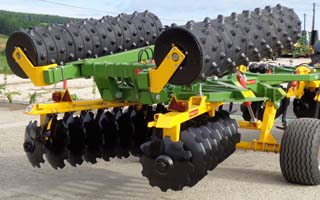

• Rear roller can be loaded by extra weight from the machine so it makes excellent consolidation.
• precisious pitch setting .

Basic equipment:

• Front drawbar

• Tapered roller bearing, with 2 seals on each side

• Manual gang angle setting

• 7 PCS tines with hydraulic trip-reset. Tine depth could be set to 70-150; 120-200; 250-340 mm. Tines could be fitted with 5 optional width duck foot points: 100; 140; 230; 305 and 330 mm.

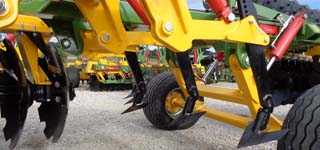

CONDISC’s conditioning tines

•  Rear lights

Options:

Rear drawbars with two pair hydraulic  circuit

Mounted packers, hydraulicly folded.

CONDISC’s mounted packers
